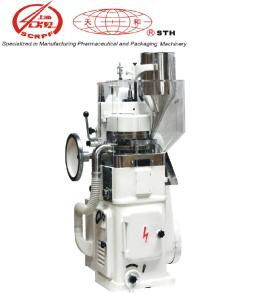

Rotary Automatic Tablet Press Machine Herbal Medicine Making Machine

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Rotary Automatic Tablet Press Machine Herbal Medicine Making Machine

Brand Name : STH,TIANHE

Model Number : ZP17 19

Certification : CE ISO GMP

Place of Origin : Shang Hai,China

MOQ : 1 Set

Price : negotiation

Supply Ability : 100 sets per year

Delivery Time : About 30 working days after payment

Packaging Details : Normal export wooden case

material : stainless

dies or punches : round and irregular

dies sets : 17 and 19sets

tablet diameter : 5.5-20mm

Max. Depth of Fill : 15mm

Max. Thickness of Tablet : 6mm

Turret Speed : 20-40r/min

Production Capacity : 25000-45000pc/h

Motor : 2.2KW 380V 50Hz

Overall Size (L*W*H) : 880*750*1600mm

Net Weight : 500kg

Contact Now

ZP17/ZP19 Automatic Rotary Tablet Press Machine Dishwasher Tablet Press Machine Automatic Herbal Medicine Pill Making Machine candy making machine

Application

This machine is not only suitable for pressing round tables from various kinds of granular materials but also different geometric shape tablets, specially for small-scale batch production. The turret carries 19(17) sets of punches and dies, so 19(17)tablets will be pressed for each revolution of the turret.


During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage.

A powder suction unit is attached to take in the residual powder during operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.

Main technical specifications

Dies 19sets 17sets
Max. Pressure 40KN 50KN
Max. Dia. of Tablet 13mm 5.5-20mm
Max. Depth of Fill 15mm 15mm
Max. Thickness of Tablet 6mm 6mm
Turret Speed 20-40r/min 20-40r/min
Production Capacity 25000-45000pc/h 25000-45000pc/h
Motor 2.2KW 380V 50Hz 2.2KW 380V 50Hz
Overall Size (L*W*H) 880*750*1600mm 880*750*1600mm
Net Weight 500kg 500kg

Remark:

  1. Time of Shipment: Within 30 days after receipt of deposit.
  2. Payment: By 30% T/T as deposit in advance, the balance 70% should be paid by T/T before shipment.
  3. Documents: Invoice, Packing list, Bill of Lading, Operation Manual and Certificate of origin.
  4. Installing: We dispatch our engineer to customer factory to set up and run the machine. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account.
  5. Warranty period: 1 year. If there is any part broken within one year, we will send the new part by courier within 7 working days.

Company information


Rotary Automatic Tablet Press Machine Herbal Medicine Making Machine

Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand STH) is founded by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".
STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.
STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by ourself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.
We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.
STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.
We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing etc. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry.

Rotary Automatic Tablet Press Machine Herbal Medicine Making Machine

OUR CUSTOMERS

Our products have covered all the parts of China and been well exporting to over 30 countries and regions around the world. We have taken the leading position in the industry due to our ability to supply complete sets of equipment and large volumes of annual sale. The trademark of 'Tianhe' is enjoying a good reputation in domestic and overseas markets, winning the favorable comments of the customers at home and abroad.

Rotary Automatic Tablet Press Machine Herbal Medicine Making Machine

Rotary Automatic Tablet Press Machine Herbal Medicine Making Machine

OUR PRODUCTS

” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.

OUR SERVICE

STH offers professional manufacturing and solution on Different Pharmaceutical Machinery and Packaging Materials.

1. Clients Inquiry and Consultation

2. Processing Solution Confirmation

3. Engineering and Manufacturing

4. Products Inspection

5. Shipment Arranging and Loading Job

6. Aftersales Service

PACKAGE

Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.

SHIPPING

Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.

FAQ

Q: Are you a factory or a trading company?
A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
